Central Battery System Addressable Emergency Luminaries 24V DC

  1. Operations for installation, maintenance, or testing must be done by authorized personnel only.
  2. The device must be connected only to the GR-8600 panel via its ADR line.
  3. First set the address before installation. To address the device see page 4.

Description

ADDRESS OPERATION

For address operations refer to the installation manual of the panel.

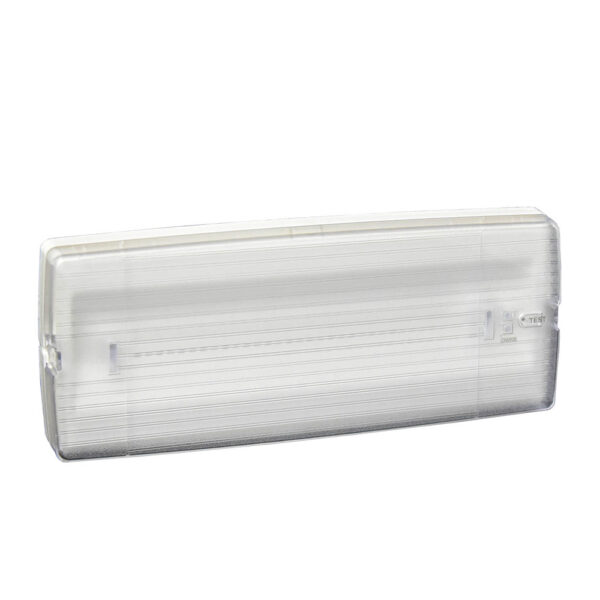

LED ADDRESSABLE EMERGENCY LUMINARIES 24V DC

Type Consumption Light Output Gross Weight
GR-324/15L/24V/ADR/A 1,5W 125 lm 710 gr.
GR-324/30L/24V/ADR/A 2,3W 250 lm 710 gr.



Suspended ceiling mounting springs
