BSR-1001

Produced in accordance with EN54-2, EN54-4.

128 zone capability.

Auto-addressing capabilities.

220-240V AC mains power supply.

It offers 4 fully monitored siren outputs with a rating of 24V / 0,3A  and 1 programmable relay, as well as 8 extra relays.

Incorporated power supply with a rating of  24V/100W and built-in battery charger for 24V batteries with a capacity of up-to 15Ah.

Description

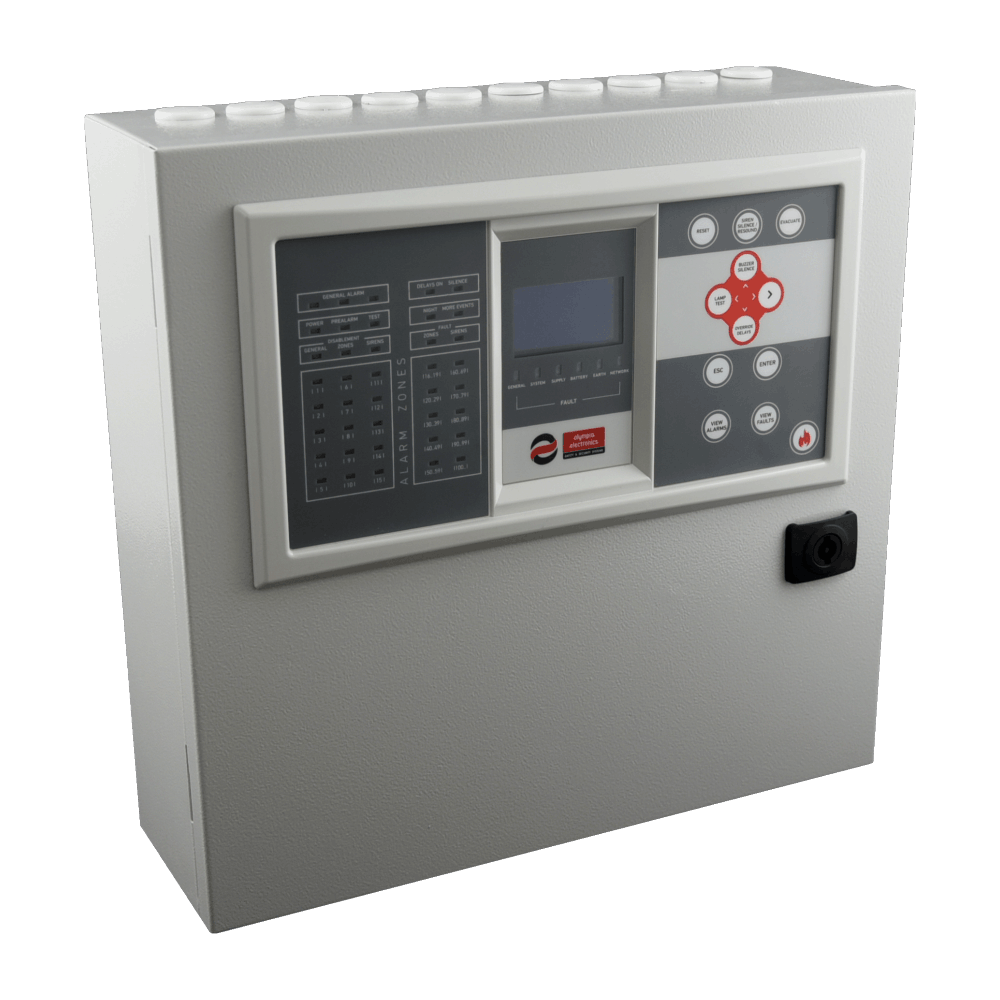

BSR-1001 Fire Alarm Panel

The BSR-1001 Fire Alarm panels offer extensive adjustments and characteristics for controlling the installed devices and sirens. These parameters can easily be adjusted using a PC-based program. More Features are give below:

  • The programming of the panel can also be done through an onboard USB.
  • Messages can be viewed on LCD, whereas LEDs show basic operations such as alarms, pre-alarms, and faults.
  • The operation is done using the built-in 11-key keypad.
  • There is also an incorporated safety lock.
  • The maximum delay for the sirens is 10 minutes.
  • Optional Ethernet control capability.
  • Optional Modbus expansion.
  • Optional external printer expansion.
