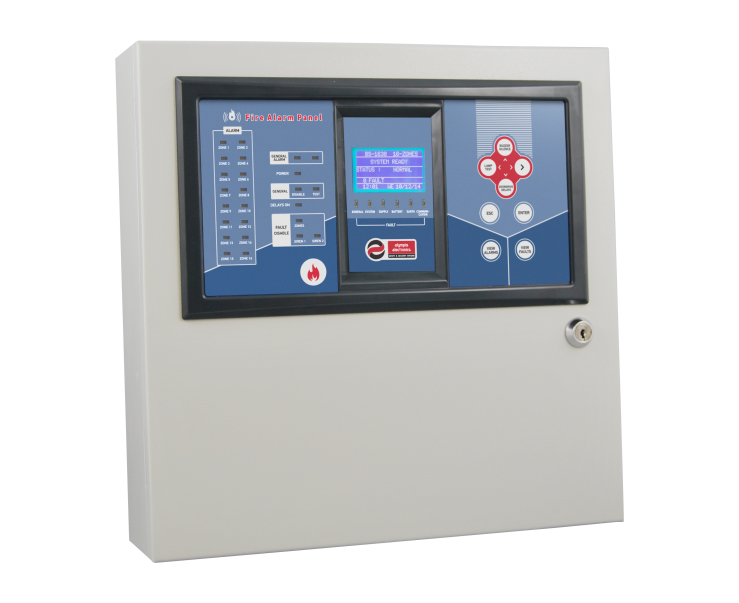

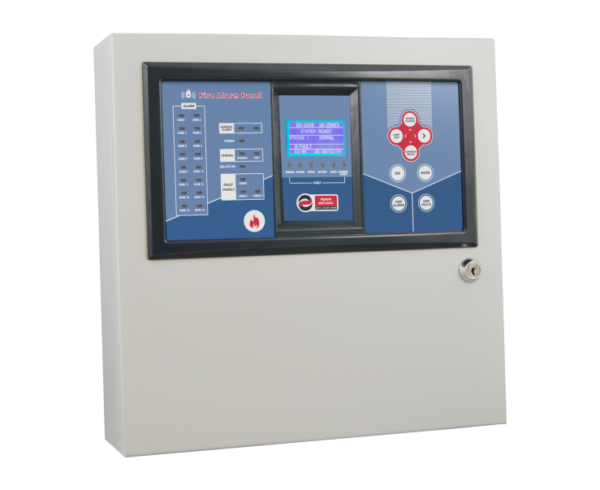

8,12,16 Zone Conventional Fire Alarm System

The family consists of 3 panels (8, 12, and 16 zones) with identical controls and indications. They have 2 outputs for sirens, an alarm relay, a fault relay, and a programmable auxiliary relay. For their operation, two A-986 (12V/7Ah) batteries are required. Alternatively, two Α-961 (12V/9Ah) batteries can be used for greater autonomy.

BS-1638 panel has 8 zones. All functions and indications are according to the European norms ΕΝ 54-2 and ΕΝ 54-4.

The panels offer up to 16 zones and are suitable for large installations such as shopping malls, hotels, and factories.

They offer a wide range of settings and characteristics for controlling the installation equipment and sirens which can be easily adjusted using a P/C via an Ethernet connection.

Description

ACCESSORIES

Type Description
BS-1640 4 zones extension card for BS-1638
BS-1641 4 zones extension card for BS-1642
GR-8530 Network card through ETHERNET
BS-613 Card with zone relays for BS-1638, BS-1642, BS-1646



BS-1638

8 zones

BS-1642

12 zones



BS-1646

16 zones
